The N-Type Adapter is a threaded, weatherproof, medium-sized RF adapter designed to carry high-frequency signals. First developed in the 1940s, it remains one of the most reliable and widely used adaptors in RF applications due to its durability, excellent performance, and ability to handle high power. It is named after its inventor, Paul Neill of Bell Labs, and is a standard choice for professional-grade RF systems.
Design and Construction
The N-Type Adapter features a threaded coupling mechanism, ensuring a secure connection that resists loosening due to vibration. Its robust build supports operation in outdoor and harsh environments. It is typically made of brass or stainless steel with nickel, silver, or gold plating to provide corrosion resistance and maintain conductivity.
Key design specifications include:
- Impedance: Available in 50-ohm and 75-ohm versions
- Frequency Range: Up to 11 GHz for standard versions; precision types can reach 18 GHz or more
- Power Handling: Suitable for high-power RF transmission due to low VSWR and high dielectric strength
- Weatherproofing: Equipped with gaskets and seals for outdoor use
Electrical Performance
The N-Type Adapter offers low signal loss and consistent impedance, making it ideal for high-frequency and high-power applications. The 50-ohm version is commonly used in telecommunications, broadcasting, and military systems, while the 75-ohm version is more common in cable TV and data networks.
Its superior VSWR (Voltage Standing Wave Ratio) performance ensures minimal signal reflection, maintaining the integrity of the transmitted signal.
Types of N-Type Adapters
- Standard N-Type – The most common, used in general RF applications up to 11 GHz.
- Precision N-Type – Designed for laboratory and high-performance systems, supporting frequencies up to 18 GHz or higher.
- Right-Angle N-Type – For installations with space limitations.
- Panel-Mount N-Type – Fixed on equipment chassis for cable-to-device connections.
- Waterproof N-Type – Equipped with extra sealing for harsh environmental conditions.
Applications
The N-Type Adaptor is highly versatile and used in various industries, including:
- Telecommunications: Connecting antennas, base stations, and RF components.
- Broadcasting: Reliable signal transfer for television and radio transmission systems.
- Military and Aerospace: Rugged performance in radar, satellite, and avionics systems.
- Test and Measurement: Used with spectrum analyzers, network analyzers, and signal generators.
- Wi-Fi & Wireless Networks: Outdoor point-to-point and point-to-multipoint setups.
Advantages of N-Type Adapters
- High-frequency support up to 18 GHz (precision versions)
- Strong mechanical connection due to threaded coupling
- Low signal loss and excellent electrical performance
- Weatherproof design for outdoor installations
- High durability and long service life
In-Series N-Type Adapter vs. Different-Series Adapter
RF systems often require adapters and adapters to join cables or components with matching or different interfaces. Among these, N-type adapters are a popular choice due to their excellent electrical performance and rugged mechanical design. Understanding in-series and different-series adapter configurations is crucial for selecting the right component for your application.

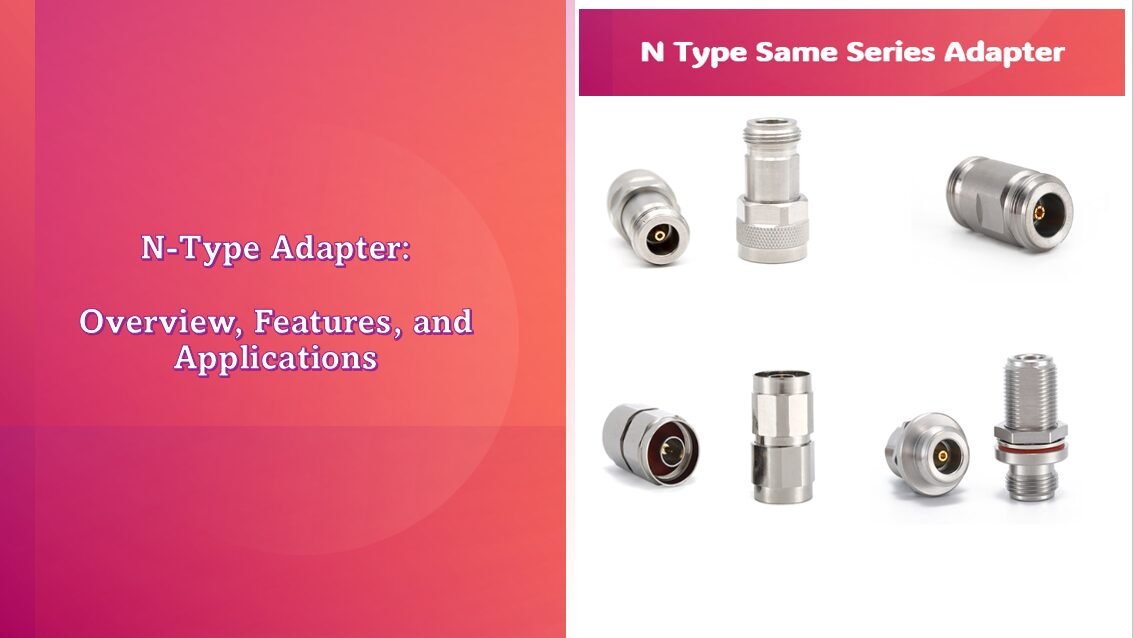

What is an in-series N-type Adapter?
An in-series N-type adapter is an adapter or coupling that connects two N-type adapters of the same type. This can be:
- N-Type male to N-Type male
- N-Type female to N-Type female
- N-Type male to N-Type female
These are used when both sides of the connection have N-type terminations and need to be extended, joined, or converted between genders.
Key Uses of In-Series N-Type Adapters:
- Extending cable length by joining two N-type terminated cables.
- Converting male to female or vice versa without changing the adapter type.
- Maintaining consistent electrical performance when the adapter type is already standardized in the system.
Advantages:
- Maintains impedance (50Ω or 75Ω) throughout the connection.
- Low insertion loss for minimal signal degradation.
- Simple, secure, and weather-resistant coupling.
What is a Different-Series Adapter?
A different-series adapter (also called an inter-series adapter) is designed to connect two different types of RF adapters. For example:
- N-Type to SMA
- N-Type to BNC
- N-Type to TNC
- N-Type to 7/16 DIN
These adapters are essential when equipment and cables use different adapter standards but need to work together in the same RF system.
Key Uses of Different-Series Adaptors:
- Connecting equipment with mismatched adapter types.
- Integrating legacy devices with newer hardware.
- Adapting test equipment to field-deployed RF components.
Advantages:
- Saves cost and time compared to replacing cables or adapters.
- Provides flexibility in mixed-adapter environments.
- Available in many combinations to suit diverse RF systems.
Conclusion
The N-Type Adapter is a proven, high-performance RF adapter that meets the demanding requirements of modern communication systems. Its combination of mechanical strength, weather resistance, and excellent electrical performance makes it a top choice for professionals in telecommunications, aerospace, defense, and broadcasting. Whether for outdoor antenna installations or precision lab setups, the N-Type Adaptor delivers reliability, low loss, and secure connections.
